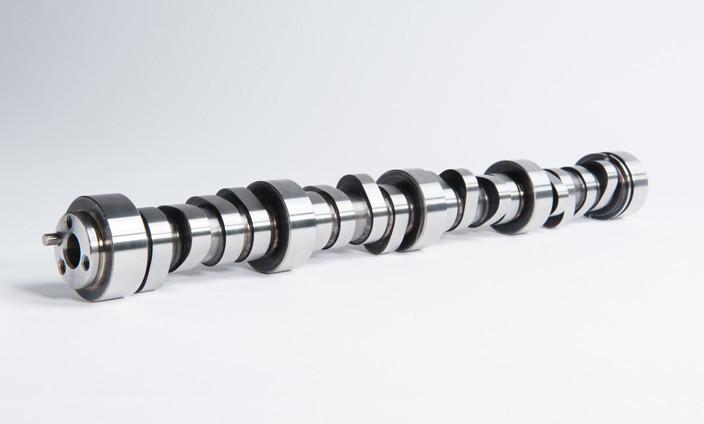

CS 232/248 LS Supercharger Camshaft (232/248-116+5) for Centrifugal

Grind # XA232/365-XA248/355-116+5
Aggressive Street - Street/Strip
Duration at .050: 232/248
116 Lobe Center Angle with a 111 Degree Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .621"/.604"
Recommended Displacement: 5.7-6.2 Liter Engines
Recommended Compression Ratio: 9.0:1-10:1
Recommended Headers: 1 3/4" - 2"
Recommended Stall Converter: 3200 - 4000 RPM
Recommended Rear Axle Ratio: 3.55 - 4.10

The CS 232/248 centrifugal supercharger LS camshaft is designed for aggressive performance applications in vehicles using 5.7-6.2 liter LS engines equipped with centrifugal style superchargers.

The CS 232/248 Supercharger Camshaft will have an aggressive "lopey" or "choppy" idle and deliver strong power in the upper mid-range to high RPM.. This camshaft will perform best in a vehicle with headers, free flowing performance exhaust and increased stall speed torque converter. Valve spring and pushrod upgrade are required.

Our Supercharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion's cam cores

Recommended Accessories:
•Cam Motion .660" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods
