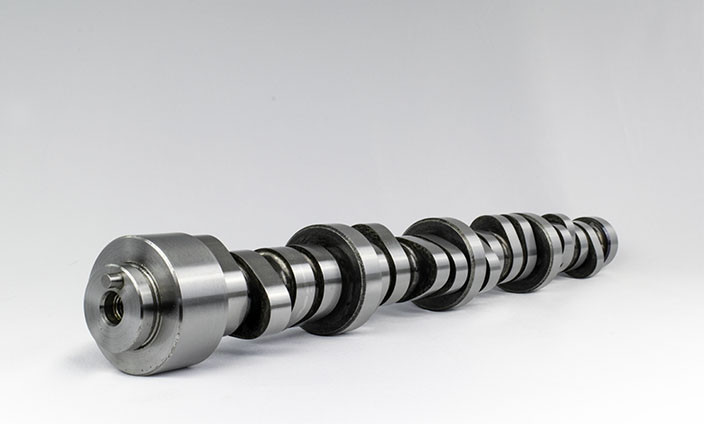

Titan 1 Gen 3 Hemi Non-VVT High Performance Hydraulic Roller Camshaft (Early 5.7 & 6.1)

GRIND# XA220/360-XA227/350-14+4
Hydraulic Roller Camshaft
Performance
Duration at .050": 220/227
114 Lobe Separation Angle
110 Intake Centerline
Lift with 1.65 Rocker Arm Ratio: .594"/.577"
Recommended Displacement: 5.7-6.1 Liter Engines
Recommended Compression Ratio: 9.0-10.8:1
Recommended Headers: Stock Manifolds to 1 3/4"
Recommended Stall Converter: Stock to 3200
Recommended Rear Axle Ratio: Stock to 3.92:1

The Titan 1 Gen 3 Hemi Non-VVT High Performance Camshaft is designed for performance in cars using 5.7 to 6.1 liter Gen 3 Hemi engines. The TITAN I will have a slight performance idle and improved power throughout the RPM range with emphasis on midrange power and torque. Additional performance gains can be realized when used with headers, an increased stall speed torque converter, free-flowing exhaust and intake systems.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.

Recommended Accessories:

• Lifter: LS233111101
• Lifter Trays: (Use OEM Factory Trays)
• Pushrods (when using OEM lifters):

Intake: PS366001220H

Exhaust: PS378001214H

• Pushrod Set (When using Cam Motion Premium Lifters):

Intake: PS365501225H

Exhaust: PS377501217H

• Valve Spring Kit: VSK915701
• Timing Set: (Use OEM Factory Timing Set)
