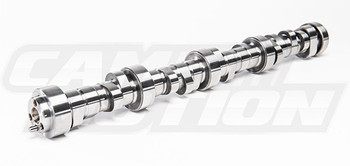

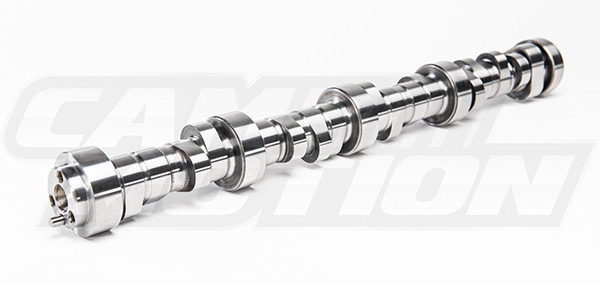

Gen 5 LT/Max 232/250 Supercharger Camshaft VVT Delete (3-Bolt)(232/250-117+4)

Product Description

Grind Number: XA232/360-XA250/355-17+4
Hydraulic Roller Camshaft
Performance or Race
Duration at .050": 232/250
117 Lobe Center Angle with a 112 Intake Centerline
Lift with 1.8 Rocker Arm Ratio: .648"/.639"
Recommended Displacement: 6.2 Liter Engines
Cylinder Heads: Gen 5 LT
Recommended Compression Ratio: 8.5-11:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 3800-5000
Recommended Rear Axle Ratio: 3.23-4.10

NOTE: Cam Motion Gen 5 LT VVT Delete Camshafts are 3-bolt camshafts that utilize a Gen 4 LS 3-bolt upper timing gear along with either the LME VVT Delete front timing cover or the Katech VVT Delete front timing cover.

NOTE: The Cam Motion 3 bolt LT camshaft has a .306" lift fuel pump lobe. It is the installers responsibility to make sure that the fuel pump is operating within its stroke range. Lash caps or pump shims may be necessary to achieve proper operation and avoid pump damage.

The Gen 5 LT/Max 232/250 Supercharger Camshaft is designed for max effort supercharged stock bottom end or built 6.2 liter LS engines. The Gen 5 LT/Max 232/250 Supercharger Cam will have a defined lope to the idle and strong upper midrange to upper RPM power. This camshaft requires a vehicle equipped with headers, high flow exhaust and increased stall speed torque converter, high flow intake systems and increased rear axle ratios.

If you are building a max effort stock bottom end or built 6.2 liter Supercharged Gen 5 LT, this camshaft is a great choice.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 steel alloy camshaft cores.
