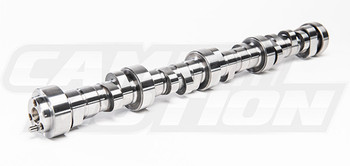

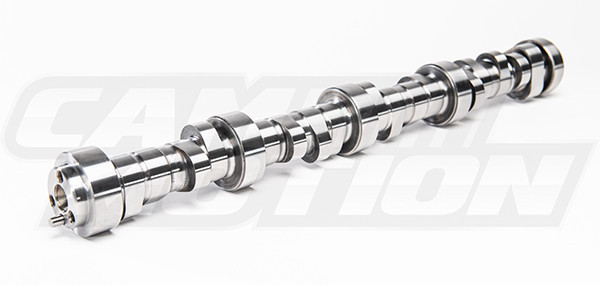

- Gen 5 LT Twin Turbo 227/238 Camshaft VVT Delete (3-Bolt) (227/238-114.5+4)
Product Description
Grind Number: XA227/350-XA238/345-14.5+4
Hydraulic Roller Camshaft
Aggressive Performance
Duration at .050": 227/238
114.5 Lobe Center Angle with a 110.5 Intake Centerline
Lift with 1.8 Rocker Arm Ratio: .630"/.621"
Recommended Displacement: 6.2 Liter Engines
Cylinder Heads: Gen 5 LT
Recommended Compression Ratio: 9.0-10.5:1
Recommended Headers: Stock Manifolds - Turbo headers
Recommended Stall Converter: 2800 - 3400
Recommended Rear Axle Ratio: 3.23-3.90
The Gen 5 LT Twin Turbo 227/238 Camshaft is designed for performance in cars using 6.2 liter LT engines. The Gen 5 LT Turbo 227/238 Cam will have a defined lope at idle and strong mid-range to upper RPM power. This camshaft is designed to be used in turbo equipped vehicles. This camshaft is intended for aggressive minded builds with high flow exhaust, increased stall speed torque converter, high flow intake systems.
If you are looking for an aggressive performance turbo cam that still drives nice, this camshaft is a great choice.
The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 steel alloy camshaft cores.
Required Accessories:
- Cam Motion .660" lift Dual Valve Spring Kit
- Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods
- 4x Timing Set
- Either BTC-002 OR BTC-001
