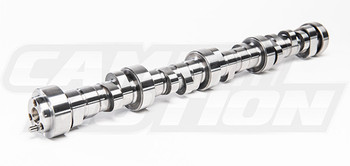

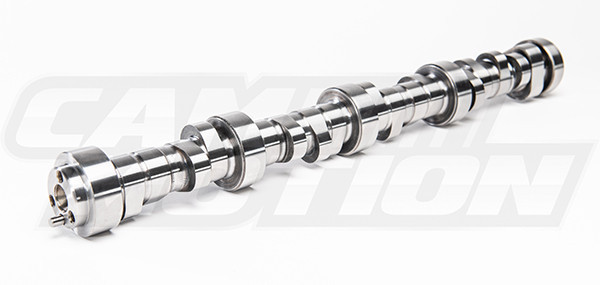

- Titan 2 Gen 5 LT 6.2 Camshaft VVT Delete (3-Bolt) (222/234-114+4)
Product Description
Grind Number: XA222/340-XA234/335-14+4
Hydraulic Roller Camshaft
Designed for performance use
Duration at .050": 222/234
114 Lobe Center Angle with a 110 Intake Centerline
Lift with 1.8 Rocker Arm Ratio: .612"/.603"
Recommended Displacement: 6.2 Liter Engines
Cylinder Heads: Gen 5 LT
Recommended Compression Ratio: 10.0-11.5:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 2400-3200
Recommended Rear Axle Ratio: 2.85-4.10
The TITAN II Gen 5 LT camshaft is designed for aggressive performance in cars using 6.2 liter LT engines. The TITAN II Gen 5 LT cam will have a mild performance idle and strong mid-range power. This camshaft will perform best in vehicles equipped with headers, high flow exhaust and increased stall speed torque converter and high flow intake systems.
If you are looking for a great performance cam that you can daily drive, this camshaft is a great choice.
The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 steel alloy camshaft cores.
Required Accessories:
- Cam Motion .660" lift Dual Valve Spring Kit
- Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods
- 4x Timing Set
- Either BTC-002 OR BTC-001
