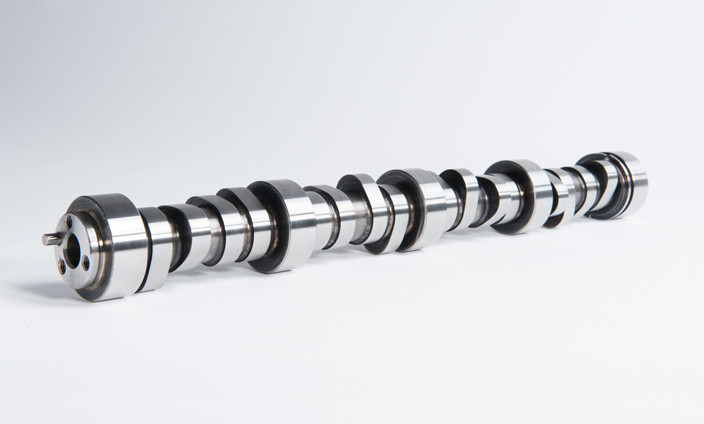

LS TT 244/256 Turbo LS Camshaft (244/256-117+4)

Grind # XA244/380-XA256/370-117+4

Racing
Duration at .050: 244/256
117 Lobe Center Angle with a 113 Degree Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .646"/.629"
Recommended Displacement: 5.7-6.2 liter & 400" Engines
Recommended Compression Ratio: 9:1-12:1
Recommended Headers: Racing Turbo Headers
Recommended Stall Converter: 3500+ RPM
Recommended Rear Axle Ratio: 3.42 +

The LS TT 244/256 Turbocharger LS Camshaft is a racing camshaft for vehicles using 5.7-6.2 liter & 400" LS engines equipped with an appropriately sized turbocharger(s) targeting moderate to aggressive boost and power levels.

The LS TT 244/256 Turbocharger Camshaft will have a racecar idle with a heavy lope and strong high RPM power. This camshaft is a great choice for racing in a properly designed combination. This camshaft requires free flowing exhaust, optimum high stall speed torque converter and optimum final drive gearing. Valve spring and pushrod upgrade are required.

Our turbocharger series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion's cam cores

Recommended Accessories:
•Cam Motion VSK143306 .750" lift Dual Valve Spring Kit
•Cam Motion 5/16" or 3/8" .080" Wall Hardened Chromoly Pushrods
