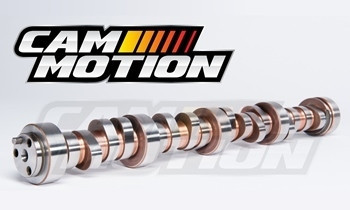

- Nitrous Stroker LS Cathedral Port Camshaft 200-325 Shot (252/268-113+5)
, $399.00 (https://cammotion.com/ls-camshafts/nitrous-ls-camshafts/nitrous-stroker-ls-cathedral-port-camshaft-200-325-shot-252-268-113-5/))
Product Description
Grind # XA252/370-XA268/360-13+5
Aggressive Street / Street-Strip
Duration at .050: 252/268
113 Lobe Center Angle with a 108 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .629"/.612"
Recommended Displacement: 400+ Cubic Inch
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 10.5:1-12:1
Recommended Headers: 1 7/8" +
Recommended Stall Converter: 5000+ (on nitrous)
Recommended Rear Axle Ratio: 3.73 +
*This camshaft is specifically designed for use with single plane intake manifolds
This camshaft is designed for the racer who is wanting the best performance on the bottle and does not mind sacrificing N/A performance to get it.
Nitrous Stroker LS Cathedral Port 200-325 Shot cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.
Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion's cam cores
Recommended Accessories:
•Cam Motion .700" Lift Dual Valve Spring Kit
•Cam Motion 3/8", .135" Wall Hardened Chromoly Pushrods
