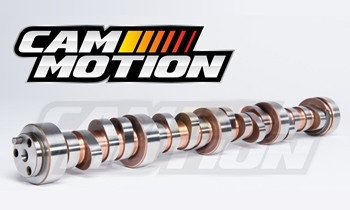

Rabid JunkYard Dog Extreme Nitrous Camshaft for SBE (242/260 -117+6), Cathedral Port, Single Plane

Grind # XA242/375-XA260/365-17+6
Aggressive Street / Street-Strip
Duration at .050: 242/260
117 Lobe Center Angle with a 111 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .637"/.621"
Recommended Displacement: 5.7-6.2 Liter Engines
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 9.4-12.5:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 5500 (on nitrous)
Recommended Rear Axle Ratio: 3.55-4.10
*This camshaft is specifically designed for use with single plane intake manifolds such as Victor, Hi-Ram, Mid-Ram and GMPP intakes.
NOTE: This camshaft creates very tight piston-to-valve clearance. YOU must check this carefully before running the engine after installing this camshaft. If you are not comfortable with this type of measurement and risk, this camshaft is NOT FOR YOU.

The Rabid Junkyard Dog Extreme Nitrous Camshaft for SBE "Single Plane" Cathedral Port cam is designed for people who are on a mission to spray the maximum amount of nitrous into their stock bottom end engine using a carburetor or single plane intake manifold and cathedral port heads.  This camshaft is an excellent choice for enthusiasts who want to push their stock short block to its limits (and most likely past its limits). This camshaft is designed to get maximum performance out of a single plane equipped 5.7 to 6.2 liter stock short block while still maintaining acceptable valve clearance without fly-cutting the pistons in cathedral port headed engines(SEE PISTON-TO-VALVE CLEARANCE WARNING ABOVE). It is the owner's/engine builder's responsibility to verify sufficient clearance during installation.  The Rabid Junkyard Dog Extreme Nitrous Single Plane Camshaft has a very lopey idle. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust, increased stall speed torque converter and increased rear axle ratios.

The Rabid Junkyard Dog Extreme Nitrous Camshaft for SBE cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores. You can read more about our cam cores here > Cam Motion's cam cores

Recommended Accessories:
•Cam Motion .660" Lift Dual Valve Spring Kit
•Cam Motion 5/16", .080" or 3/8", .135" Wall Hardened Chromoly Pushrods
