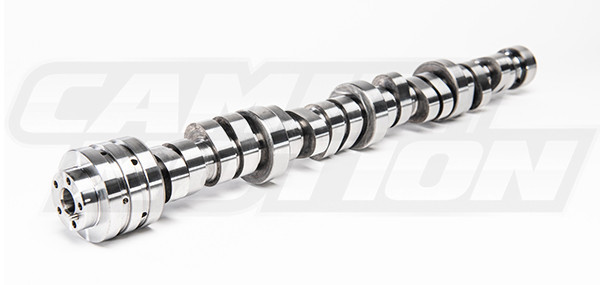

Gen 3 Hemi 224/238 PD Supercharger Hydraulic Roller Camshaft (Late 5.7, 6.2 & 6.4)

GRIND# XA224/370-XA238/370-118+4
Hydraulic Roller Camshaft
Performance
Duration at .050": 224/238
118 Lobe Separation Angle
114 Intake Centerline
Lift with 1.65 Rocker Arm Ratio: .610"/.610"
Recommended Displacement: 5.7-6.4 Liter Engines
Recommended Compression Ratio: 8.5.0-10:1
Recommended Headers: Stock Manifolds to 1 3/4"
Recommended Stall Converter: stock to 3000
Recommended Rear Axle Ratio: Stock to 3.92:1

The Gen 3 Hemi 224/238 PD Supercharger Camshaft is designed for performance in cars using late 5.7 and 6.4 liter VVT-style Gen 3 Hemi engines. The 224/238 PD will have a slight performance idle and improved power throughout the RPM range with emphasis on midrange power and torque. Additional performance gains can be realized when used with headers, an increased stall speed torque converter, free-flowing exhaust and intake systems.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.

Recommended & Required Accessories:

• Lifter: LS233111101
• Lifter Trays: (Use OEM Factory Trays)
• Pushrods (when using OEM lifters):

Intake: PS367501222H

Exhaust: PS380501221H

• Pushrod Set (When using Cam Motion Premium Lifters):

Intake: PS367001224H

Exhaust: PS380001223H

• Valve Spring Kit for Late 5.7 liter engines: VSK915702
  Valve Spring Kit for 6.2 & 6.4 liter engines: VSK915703
• Timing Set: (Use OEM Factory Timing Set)
• NOTE: Use of Cam Motion VVT Phaser Lock Required: PHLK-03
