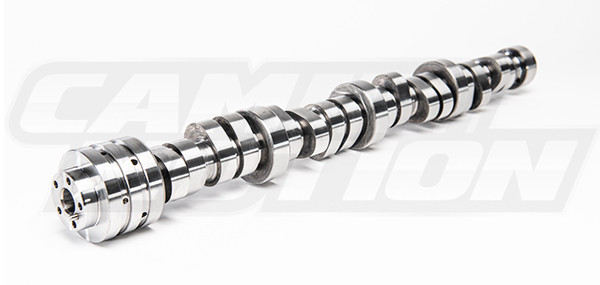

Gen 3 Hemi 228/242 PD Supercharger Hydraulic Roller Camshaft (Late 5.7, 6.2 & 6.4)

GRIND# XA228/375-XA242/375-18+4
Hydraulic Roller Camshaft
Performance
Duration at .050": 228/242
118 Lobe Separation Angle
114 Intake Centerline
Lift with 1.65 Rocker Arm Ratio: .618"/.618"
Recommended Displacement: 5.7 to 6.4 Liter Engines
Recommended Compression Ratio: 8.5.0-10.5:1
Recommended Headers: Stock Manifolds to 1 3/4"
Recommended Stall Converter: stock to 3500
Recommended Rear Axle Ratio: Stock to 3.92:1

The Gen 3 Hemi 228/242 PD Supercharger Camshaft is designed for performance in cars using late 5.7 and 6.4 liter VVT-style Gen 3 Hemi engines. The 228/242 PD will have a performance idle and improved power through the midrange and upper RPM. Additional performance gains can be realized when used with headers, an increased stall speed torque converter, free-flowing exhaust and intake systems.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.

Recommended & Required Accessories:

• Lifter: LS233111101
• Lifter Trays: (Use OEM Factory Trays)
• Pushrods (when using OEM lifters):

Intake: PS367501222H

Exhaust: PS380501221H

• Pushrod Set (When using Cam Motion Premium Lifters):

Intake: PS367001224H

Exhaust: PS380001223H

• Valve Spring Kit for Late 5.7 liter engines: VSK915702
  Valve Spring Kit for 6.2 & 6.4 liter engines: VSK915703
• Timing Set: (Use OEM Factory Timing Set)
• NOTE: Use of Cam Motion VVT Phaser Lock Required: PHLK-03
